revenue grade monitoring power meter with PC software

FOB Reference Price:Get Latest Price
US $10-300 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
1000 Piece/Pieces per Month
Port:
Beijing/Shenzhen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
GFUVE
Model Number:
FU2200A
Measuring Current Range:
0-6A
Measuring Voltage Range:
0-600V
Accuracy Class:
0.5s
Operating Temperature:
-25 - 55 °C
Dimensions:
96X96mm
Energy:
0.5S
Transformation Ratio:
PT,CT.
Measuring System:
3P4W/3P3W etc.
Address:
1-247
Baud:
1200-19200
Memory:
4M
Power Supply(AC/DC):
AC85-265V/DC85-330V,DC18-90V(Optional)
Trepanning:
92X92mm
Thickness:
20mm
Depth:
60mm (without expansion module)
Packaging & Delivery
Packaging Details
Standard export carton
Delivery Time
2days after receipt of firm order

Specifications

Accuracy 0.5s
With Ethernet RTU-Modbus
Data logger can set by end user from 1min to60min intervals to record

revenue grade monitoring power meter with PC software



Product Description

Introduction

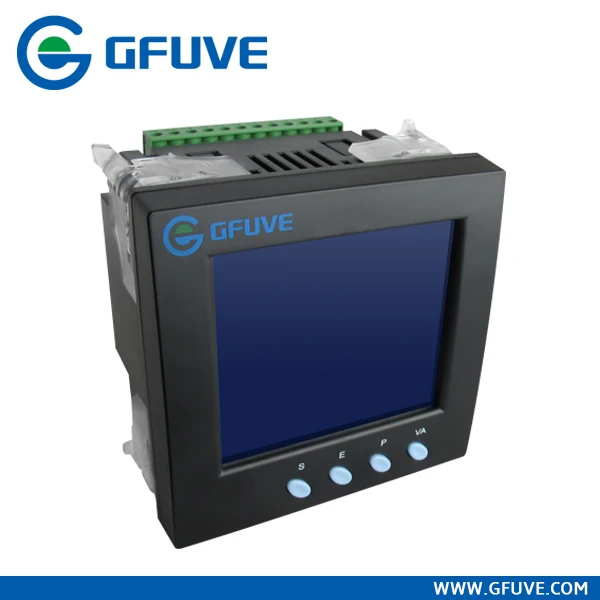

The FU2200A digital power meter  is a range of economical yet highly functional three-phase multifunction power and energy meters manufactured by GFUVE. These meters provide excellent value for monitoring power and energy management systems. The 2200A digital power meter  may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port running the Modbus RTU protocol. With a wide range of models to choose from, the 2200A digital power meter  offers unparalleled value and functionality.

Features

  • True-RMS measuring Parameters.
  • ANSI and IEC 0.5 Accuracy class.
  • Power Quality Analysis.
  • 4 Quadrant Energy;
  • 4MB onboard memory;
  • Data logging
  • High-speed RS485, Ethernet Port (optional);
  • Measure Individual Harmonics from 2nd to 63th (optional);
  • Module Design;
  • TOU, 4 Tariffs, 12 Seasons, 14 Schedules
  • Class leading Warranty.
  • With management software

Applications

  • Metering of distribution feeders, transformers, generators, capacitor banks and motors.
  • Medium and low voltage systems.
  • Commercial, industrial, utility.
  • Power quality analysis.
  1. Specifications

Parameter

Accuracy

Resolution

Range

Voltage

0.2%

0.01V

0.5~500kV

Current

0.2%

0.01mA

5mA~50000A

Active Power

0.5%

0.2W

-9999MW~+9999MW

Reactive Power

2%

0.2var

-9999Mvar~+9999Mvar

Apparent Power

0.5%

0.2VA

0~9999MVA

Active Power Demand

0.5%

0.2W

-9999MW~+9999MW

Reactive Power Demand

2%

0.2var

-9999Mvar~+9999Mvar

Apparent Power Demand

0.5%

0.2VA

0~9999MVA

Power Factor

0.005

0.0001

-1.0000~0~1.0000

Frequency

0.01Hz

0.01Hz

45.000~65.000Hz

Energy

Primary

0.5%

0.1kWh

0~99999999.9kWh

Secondary

0.001kWh

0~999999.999kWh

Reactive Energy

Primary

2%

0.1kvarh

0~99999999.9kvarh

Secondary

0.001kvarh

0~999999.999kvarh

Apparent Energy

Primary

0.5%

0.1VAh

0~99999999.9kVAh

Secondary

0.001VAh

0~999999.999kVAh

Phase Angle

0.1°

0.01°

0~359.99°

Unbalance Factor

2%

0.01%

0~300.00%

PT



1

1~10000

CT



1

1~10000

Addr



1

1~254



Current Input

Rated Current 5A/1A ac                                                Measurement Range       0~6A ac

Overload capacity 20A continuous, 50A 10Sec, 100A 1Sec      Burden  0.5VA @5A RMS

Current start 0.1%Rated value                                       Accuracy 0.2%

Voltage Input

Rated voltage  400Vac L-N, 690Vac L-L                            Input Impedance    1MΩ per phase

Overload capacity 1500Vac continuous,2500Vac 50/60Hz 1min  Frequency      45Hz~65Hz

                                                                             Accuracy 0.2%

Energy Accuracy

Active class 0.5S (IEC62053-22,GB/T17215.322-2008)

Reactive class 2 (IEC62053-23)

Power Supply (AC/DC)

Range     85~265Vac,50/60Hz;100~300Vdc                 Power Consumption:5W

Insulation voltage capacity 2000Vac,50/60Hz,1min

Working condition

Operation Temperature   -25°C~+70°C                Storage Temperature      -40°C~+85°C

Relative Humidity  5% ~ 95%( non-condensing)
