Quick Details

  • Place of Origin: Beijing, China (Mainland)
  • Brand Name: GFUVE
  • Model Number: XQ20
  • Usage: Current
  • Phase: Single
  • Coil Structure: Toroidal
  • Coil Number: Autotransformer
  • Dimension: 52.5mm*137.5mm*28mm
  • Frequency: 50Hz/60Hz
  • Operating Temperature: -25°C to +70°C
  • Voltage Range: 600AC (isolated condation)
  • Accuracy: 0.1%,02%
  • Primary Current: 5-200A
  • Ratio: 1000: 1 or 2000:1 , customized
  • Second Current: 2.5-200mA
  • Isolation Voltage: 3KV/Min
  • Max jaw opening: 20 mm

Packaging & Delivery

Packaging Details Carton box with plastic paper
Delivery Time 3days upon receipt of firm order

Specifications

Suitable for 200 A cable online measurement.

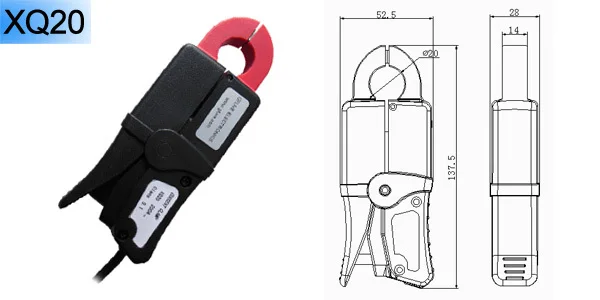

Dimension:52.5mm*137.5mm*28mm
Holding wire diameter:20mm

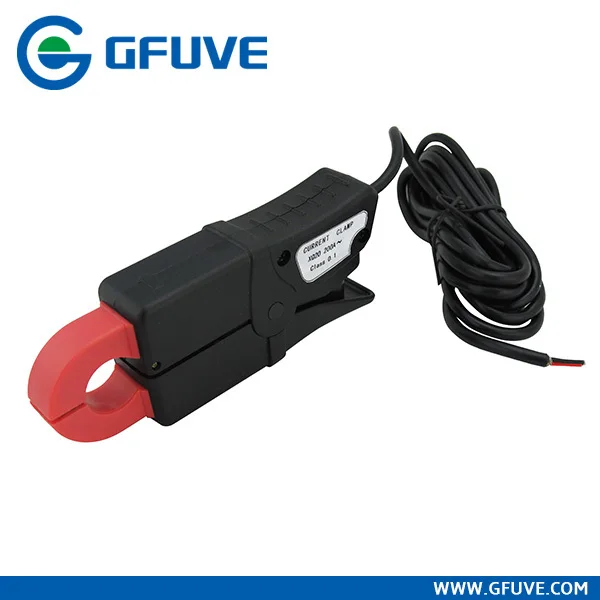

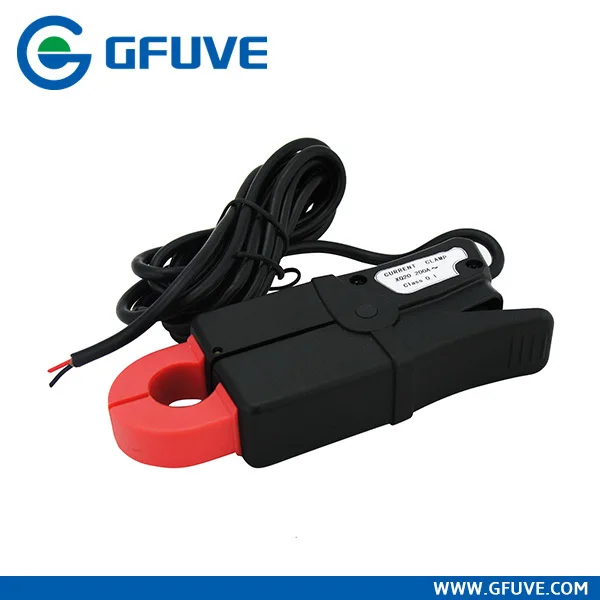

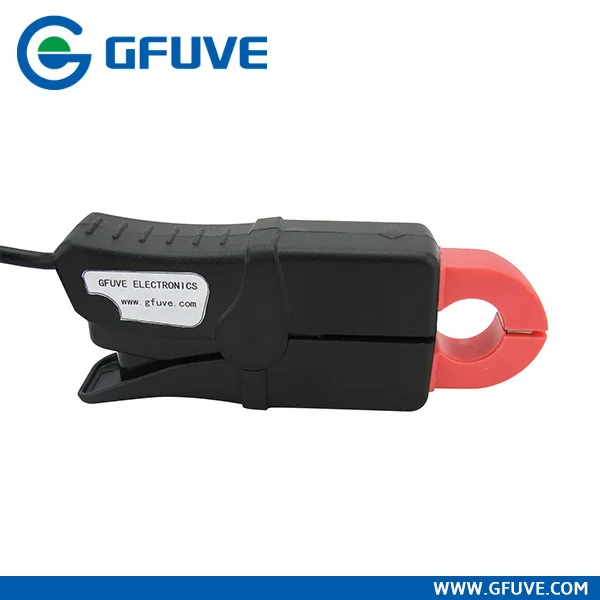

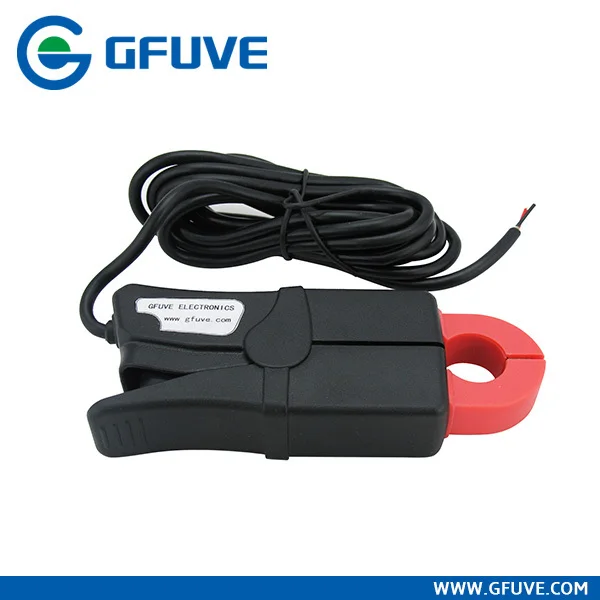

Standard mini clamp-on current transformer

Product Description

Standard mini clamp-on current transformer belongs to high performance transformer field. It is a high accuracy AC current transformer which can measure and analyze a variety of electric parameter without power outage, and the difficult part in technology development is that the high quality magnetic core requests open freely.

Applications

Power quality measuring

Large industrial loads

Measuring around cable bundles

Power load monitoring

Waveform analysis

Features

Measurement range of 1mA to 200A AC

Small, compact size

Improved ergonomic design and easy operation

Conforms to EN 61010, 600V CAT III

Low phase shift for power measurement

Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

Parameters

Primary current

Secondary current

Precision(class)

5A

2.5mA

0.2%

20A(40)A

2.5mA

0.1%, 0.2%

20A

5mA

0.1%, 0.2%

20A

10mA

0.1%, 0.2%

30A

25mA

0.1%, 0.2%

100A

20mA

0.1%, 0.2%

100A

25mA

0.1%, 0.2%

100A

40mA

0.1%, 0.2%

100A

50mA

0.1%, 0.2%

100A

100mA

0.2%

150A

50mA

0.1%, 0.2%

150A

100mA

0.1%, 0.2%

150A

150mA

0.1%, 0.2%

200A

100mA

0.1%, 0.2%

200A

80mA

0.1%, 0.2%

200A

50mA

0.1%, 0.2%

200A

200mA

0.1%, 0.2%

Specifications

Ratio

1000: 1 or 2000:1

Nominal input current

200 A

Max. Cont. Input current

240 A

Accuracy

0.1 %,0.2%

Over voltage category

CAT III 600 V

Output signal

200mA AC at nominal input current

Frequency range

40 Hz....2000 Hz

Dielectric strength

3000 V 50Hz/60Hz at 1 minute

Temperature range

-20 °C...+55 °C

Output

2.5 meter cable with D01 connector

Max. voltage not insulated conductors

600 V

Max. jaw opening

20 mm

Standard

EN 61010-1

Dimensions

52.5mm x 137.5mm x 28 mm

Weight

400 g
